IRGB6B60KD Datasheet - International Rectifier

IRGB6B60KD_InternationalRectifier.pdf

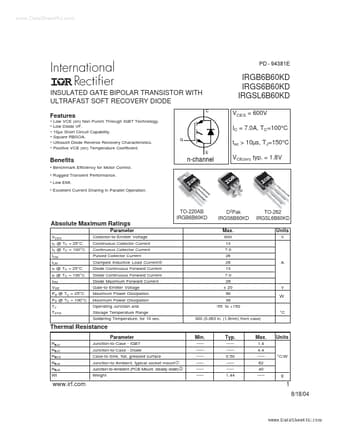

Preview of IRGB6B60KD PDF
IRGB6B60KD Datasheet Preview Page 2 IRGB6B60KD Datasheet Preview Page 3

Datasheet Details

Part number:

IRGB6B60KD

Manufacturer:

International Rectifier

File Size:

349.29 KB

Description:

Insulated gate bipolar transistor.

IRGB6B60KD, INSULATED GATE BIPOLAR TRANSISTOR

IRGB6B60KD Features

* Low VCE (on) Non Punch Through IGBT Technology.

* Low Diode VF.

* 10µs Short Circuit Capability.

* Square RBSOA.

* Ultrasoft Diode Reverse Recovery Characteristics.

* Positive VCE (on) Temperature Coefficient. G E tsc > 10µs, TJ=150°C Benefits
