IRGBC30MD2, INSULATED GATE BIPOLAR TRANSISTOR

Previous Datasheet Index Next Data Sheet PD - 9.1108 IRGBC30MD2 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE .
Co-packaged IGBTs are a natural extension of International Rectifier's well known IGBT line.

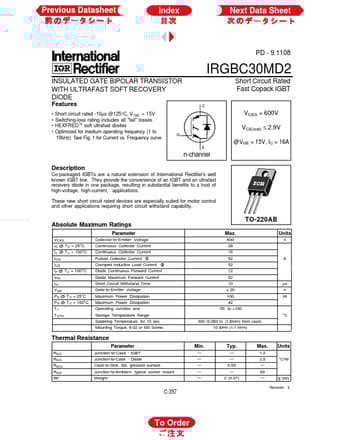

datasheet Preview Page 1 from Datasheet4u.com

IRGBC30MD2_InternationalRectifier.pdf

IRGBC30MD2 Datasheet Preview — Preview of IRGBC30MD2 PDF

Datasheet Details

Part number:

IRGBC30MD2

Manufacturer:

International Rectifier

File Size:

307.14 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Features

* Short circuit rated -10µs @125°C, V GE = 15V
* Switching-loss rating includes all "tail" losses TM
* HEXFRED soft ultrafast diodes
* Optimized for medium operating frequency (1 to 10kHz) See Fig. 1 for Current vs. Frequency curve C Short Circuit Rated Fast Copack I

Applications

* These new short circuit rated devices are especially suited for motor control and other applications requiring short circuit withstand capability. www. DataSheet4U. com Absolute Maximum Ratings Parameter VCES IC @ T C = 25°C IC @ T C = 100°C ICM ILM IF @ T C = 100°C IFM tsc VGE PD @ T C = 25°C PD @
