IRGIB10B60KD1 - INSULATED GATE BIPOLAR TRANSISTOR

Features

  • Low VCE (on) Non Punch Through IGBT Technology.
  • Low Diode VF.
  • 10µs Short Circuit Capability.
  • Square RBSOA.
  • Ultrasoft Diode Reverse Recovery Characteristics.
  • Positive VCE (on) Temperature Coefficient.
  • Maximum Junction Temperature Rated at 175°C G E C VCES = 600V IC = 10A, TC=100°C tsc > 10µs, TJ=150°C Benefits.
  • Benchmark Efficiency for Motor Control.
  • Rugged Transient Performance.
  • Low EMI.

📥 Download Datasheet

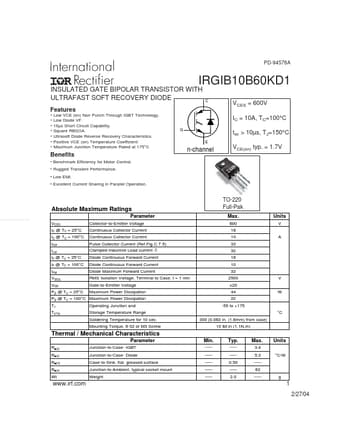

Datasheet preview – IRGIB10B60KD1

📁 Similar Datasheet

Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD-94576A IRGIB10B60KD1 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE Features • Low VCE (on) Non Punch Through IGBT Technology. • Low Diode VF. • 10µs Short Circuit Capability. • Square RBSOA. • Ultrasoft Diode Reverse Recovery Characteristics. • Positive VCE (on) Temperature Coefficient. • Maximum Junction Temperature Rated at 175°C G E C VCES = 600V IC = 10A, TC=100°C tsc > 10µs, TJ=150°C Benefits • Benchmark Efficiency for Motor Control. • Rugged Transient Performance. • Low EMI. • Excellent Current Sharing in Parallel Operation. n-channel VCE(on) typ. = 1.7V Absolute Maximum Ratings www.DataSheet4U.com TO-220 Full-Pak Max. 600 16 10 A 32 32 16 10 32 2500 ±20 44 22 -55 to +175 °C 300 (0.063 in. (1.6mm) from case) 10 lbf.in (1.1N.
