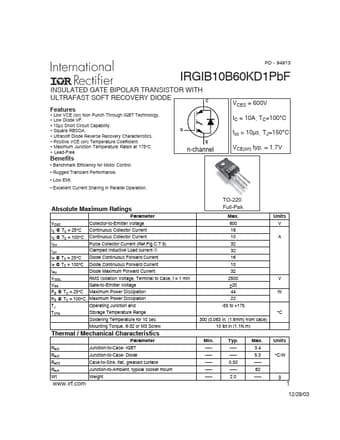

IRGIB10B60KD1PBF Datasheet Preview — Preview of IRGIB10B60KD1PBF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRGIB10B60KD1PBF
Manufacturer: International Rectifier
File Size: 511.05 KB
Datasheet: IRGIB10B60KD1PBF_InternationalRectifier.pdf
Description: INSULATED GATE BIPOLAR TRANSISTOR

IRGIB10B60KD1PBF Product details

Features

Low VCE (on) Non Punch Through IGBT Technology.
Low Diode VF.
10µs Short Circuit Capability.
Square RBSOA.
Ultrasoft Diode Reverse Recovery Characteristics.
Positive VCE (on) Temperature Coefficient.
Maximum Junction Temperature Rated at 175°C.
Lead-Free C VCES = 600V IC = 10A, TC=100°C G E tsc > 10µs, TJ=150°C n-channel VCE(on) typ. = 1.7V Benefits.
Benchmark Efficiency for Motor Control.
Rug.
