IRGIB15B60KD1 - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

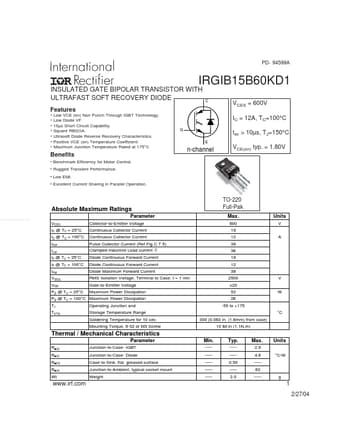

IRGIB15B60KD1 Datasheet Preview — Preview of IRGIB15B60KD1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRGIB15B60KD1
Manufacturer: International Rectifier
File Size: 305.93 KB
Datasheet: IRGIB15B60KD1_InternationalRectifier.pdf
Description: INSULATED GATE BIPOLAR TRANSISTOR

IRGIB15B60KD1 Product details

Features

Low VCE (on) Non Punch Through IGBT Technology.
Low Diode VF.
10µs Short Circuit Capability.
Square RBSOA.
Ultrasoft Diode Reverse Recovery Characteristics.
Positive VCE (on) Temperature Coefficient.
Maximum Junction Temperature Rated at 175°C G E C VCES = 600V IC = 12A, TC=100°C tsc > 10µs, TJ=150°C Benefits.
Benchmark Efficiency for Motor Control.
Rugged Transient Performance.
Low EMI.
