IRGIB10B60KD1P - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

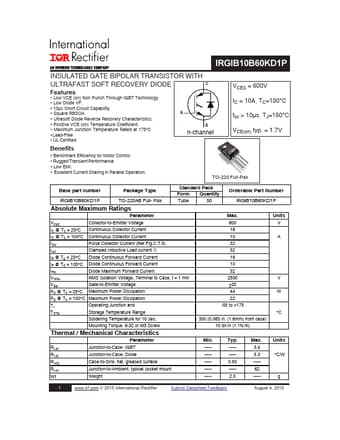

IRGIB10B60KD1P Datasheet Preview — Preview of IRGIB10B60KD1P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRGIB10B60KD1P
Manufacturer: International Rectifier
File Size: 394.00 KB
Datasheet: IRGIB10B60KD1P-InternationalRectifier.pdf
Description: INSULATED GATE BIPOLAR TRANSISTOR

IRGIB10B60KD1P Product details

Features

Low VCE (on) Non Punch Through IGBT Technology.
Low Diode VF.
10μs Short Circuit Capability.
Square RBSOA.
Ultrasoft Diode Reverse Recovery Characteristics.
Positive VCE (on) Temperature Coefficient.
Maximum Junction Temperature Rated at 175°C.
Lead-Free.
UL Certified C G E n-channel VCES = 600V IC = 10A, TC=100°C tsc > 10μs, TJ=150°C VCE(on) typ. = 1.7V Benefits.
Benchmark Efficiency for Motor C.
