Part number: RD02MUS2
Manufacturer: Mitsubishi Electric
File Size: 279.97KB
Download: 📄 Datasheet
Description: RoHS Compliance
*High power gain: Pout>2W, Gp>16dB @Vdd=7.2V,f=175MHz,520MHz
*High Efficiency:65%typ.(175MHz)
*High Efficiency:65%typ.(520MHz)
*Integrated gate protection.
This device have an interal monolithic zener diode from gate to source for ESD protection.
OUTLINE
DRAWING
4.6+/-0.05.

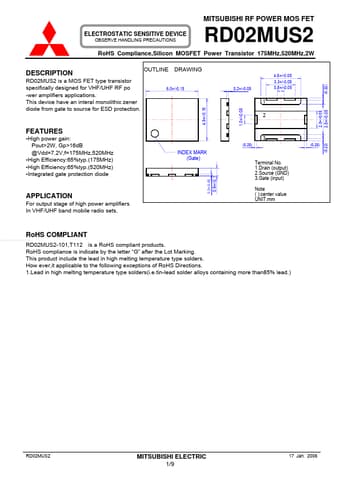

RD02MUS2 is a MOS FET type transistor specifically designed for VHF/UHF RF po -wer amplifiers applications. This device have an interal monolithic zener diode from gate to source for ESD protection.
OUTLINE
DRAWING
4.6+/-0.05 3.3+/-0.05 0.8+/-0.05
.
