STG4158 - Low voltage 0.6 ohm typ single SPDT switch

ST Microelectronics

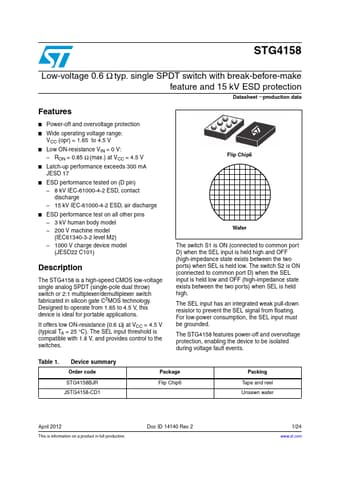

STG4158 Datasheet Preview — Preview of STG4158 PDF

Datasheet Details

Part number	STG4158
Manufacturer	STMicroelectronics ↗
File Size	552.19 KB
Description	Low voltage 0.6 ohm typ single SPDT switch
Datasheet	STG4158_STMicroelectronics.pdf

STG4158 Product details

Description

The STG4158 is a high-speed CMOS low-voltage single analog SPDT (single-pole dual throw) switch or 2:1 multiplexer/demultiplexer switch fabricated in silicon gate C2MOS technology.

Features

Power-off and overvoltage protection.
Wide operating voltage range: VCC (opr) = 1.65 to 4.5 V.
Low ON-resistance VIN = 0 V:.
RON = 0.85 Ω (max. ) at VCC = 4.5 V.
Latch-up performance exceeds 300 mA JESD 17.
ESD performance tested on (D pin).
8 kV IEC-61000-4-2 ESD, contact discharge.
15 kV IEC-61000-4-2 ESD, air discharge.
ESD performance test on all other pins.
3 kV human body model.
200 V machine model (IEC61340-3-2 lev.
