STG4159 - Low voltage 0.3 Ohm max single SPDT switch

ST Microelectronics

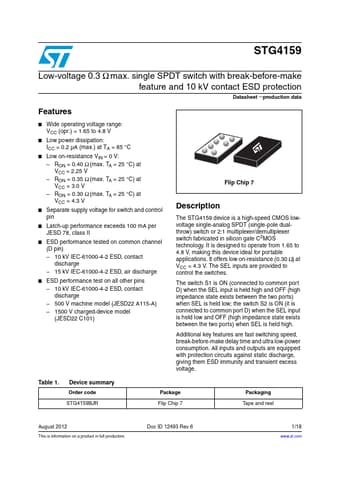

STG4159 Datasheet Preview — Preview of STG4159 PDF

Datasheet Details

Part number	STG4159
Manufacturer	STMicroelectronics ↗
File Size	831.69 KB
Description	Low voltage 0.3 Ohm max single SPDT switch
Datasheet	STG4159_STMicroelectronics.pdf

STG4159 Product details

Description

The STG4159 device is a high-speed CMOS lowvoltage single-analog SPDT (single-pole dualthrow) switch or 2:1 multiplexer/demultiplexer switch fabricated in silicon gate C2MOS technology.

Features

Wide operating voltage range: VCC (opr. ) = 1.65 to 4.8 V.
Low power dissipation: ICC = 0.2 µA (max. ) at TA = 85 °C.
Low on-resistance VIN = 0 V:.
RON = 0.40 Ω (max. TA = 25 °C) at VCC = 2.25 V.
RON = 0.35 Ω (max. TA = 25 °C) at VCC = 3.0 V.
RON = 0.30 Ω (max. TA = 25 °C) at VCC = 4.3 V.
Separate supply voltage for switch and control pin.
Latch-up performance exceeds 100 mA per JESD 78, class II.
ESD performance tested on common channel (D.
