STG4160 - single SPDT switch

STMicroelectronics

STG4160 Datasheet Preview — Preview of STG4160 PDF

Datasheet Details

Part number	STG4160
Manufacturer	STMicroelectronics ↗
File Size	639.29 KB
Description	single SPDT switch
Datasheet	STG4160-STMicroelectronics.pdf

STG4160 Product details

Description

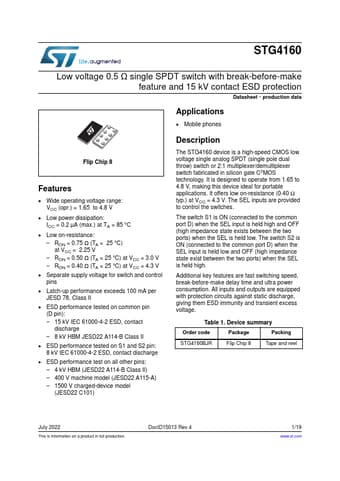

The STG4160 device is a high-speed CMOS low voltage single analog SPDT (single pole dual throw) switch or 2:1 multiplexer/demultiplexer switch fabricated in silicon gate C2MOS technology.

Features

Wide operating voltage range: VCC (opr. ) = 1.65 to 4.8 V.
Low power dissipation: ICC = 0.2 µA (max. ) at TA = 85 °C.
Low on-resistance:.
RON = 0.75 Ω (TA = 25 °C) at VCC = 2.25 V.
RON = 0.50 Ω (TA = 25 °C) at VCC = 3.0 V.
RON = 0.40 Ω (TA = 25 °C) at VCC = 4.3 V.
Separate supply voltage for switch and control pins.
Latch-up performance exceeds 100 mA per JESD 78, Class II.
ESD performance tested on common pin (D pin.
