STG4259 - Low voltage 0.3 Ohm max dual SPDT switch

ST Microelectronics

STG4259 Datasheet Preview — Preview of STG4259 PDF

Datasheet Details

Part number	STG4259
Manufacturer	STMicroelectronics ↗
File Size	352.15 KB
Description	Low voltage 0.3 Ohm max dual SPDT switch
Datasheet	STG4259_STMicroelectronics.pdf

STG4259 Product details

Description

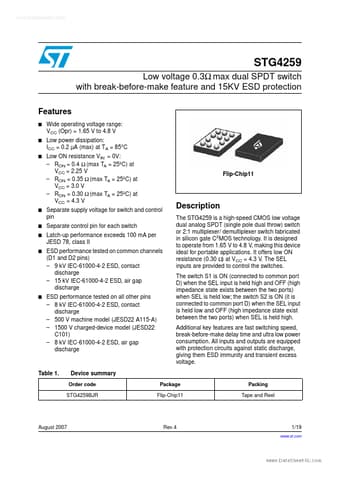

The STG4259 is a high-speed CMOS low voltage dual analog SPDT (single pole dual throw) switch or 2:1 multiplexer/ demultiplexer switch fabricated in silicon gate C2MOS technology.

Features

Wide operating voltage range: VCC (Opr) = 1.65 V to 4.8 V Low power dissipation: ICC = 0.2 µA (max) at TA = 85°C Low ON resistance VIN = 0V:.
RON = 0.4 Ω (max TA = 25ºC) at VCC = 2.25 V.
RON = 0.35 Ω (max TA = 25ºC) at VCC = 3.0 V.
RON = 0.30 Ω (max TA = 25ºC) at VCC = 4.3 V Separate supply voltage for switch and control pin Separate control pin for each switch Latch-up performance exceeds 100 mA per JESD 78, class II ESD performance tested on common.
