STGSB200M65DF2AG

IGBT

STGSB200M65DF2AG Features

* AEC-Q101 qualified

* 6 μs of minimum short-circuit withstand time

* VCE(sat) = 1.65 V (typ.) @ IC = 200 A

* Tight parameter distribution

* Positive VCE(sat) temperature coefficient

* Low thermal resistance

* Maximum junction temperature: TJ =

STGSB200M65DF2AG General Description

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure. The device is part of the M series IGBTs, which represent an optimal balance between inverter system performance and efficiency where the low-loss and the short-circuit functionality is essential. Further.

STGSB200M65DF2AG Datasheet (567.46 KB)

Preview of STGSB200M65DF2AG PDF

Datasheet Details

Part number:

STGSB200M65DF2AG

Manufacturer:

STMicroelectronics ↗

File Size:

567.46 KB

Description:

Igbt.

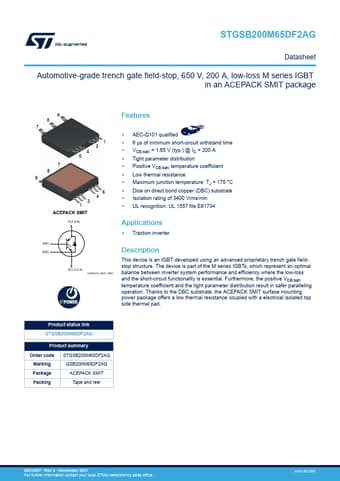

STGSB200M65DF2AG Datasheet Automotive-grade trench gate field-stop, 650 V, 200 A, low-loss M series IGBT in an ACEPACK SMIT package 9 8 7 7 8 9 4 6.
