STGST200G65DTAG, STGST200G65DFAG Automotive-grade trench gate field-stop IGBT

STMicroelectronics

Description

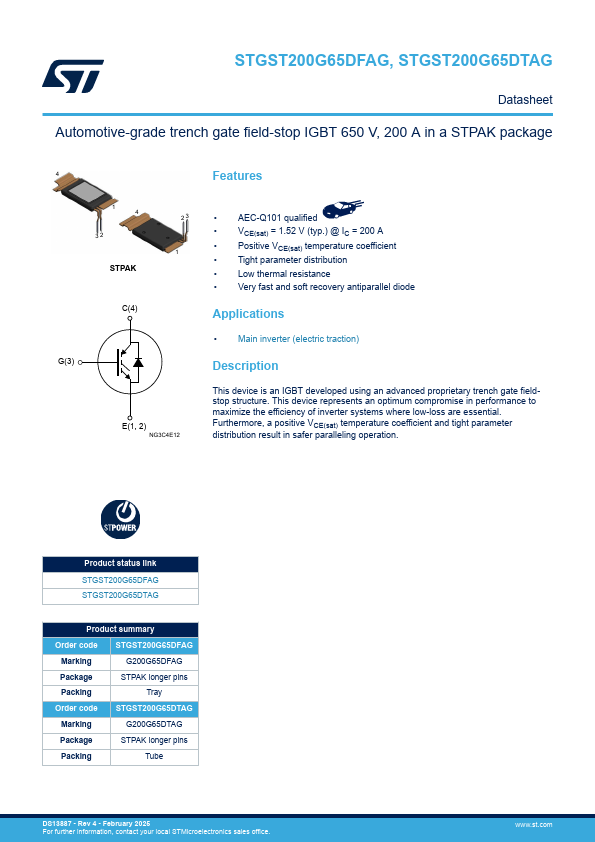

STGST200G65DFAG, STGST200G65DTAG Datasheet Automotive-grade trench gate field-stop IGBT 650 V, 200 A in a STPAK package 4 .
This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

📥 Download Datasheet

STGST200G65DTAG Datasheet Preview — This datasheet PDF includes multiple part numbers: STGST200G65DTAG, STGST200G65DFAG. Please refer to the document for exact specifications by model.

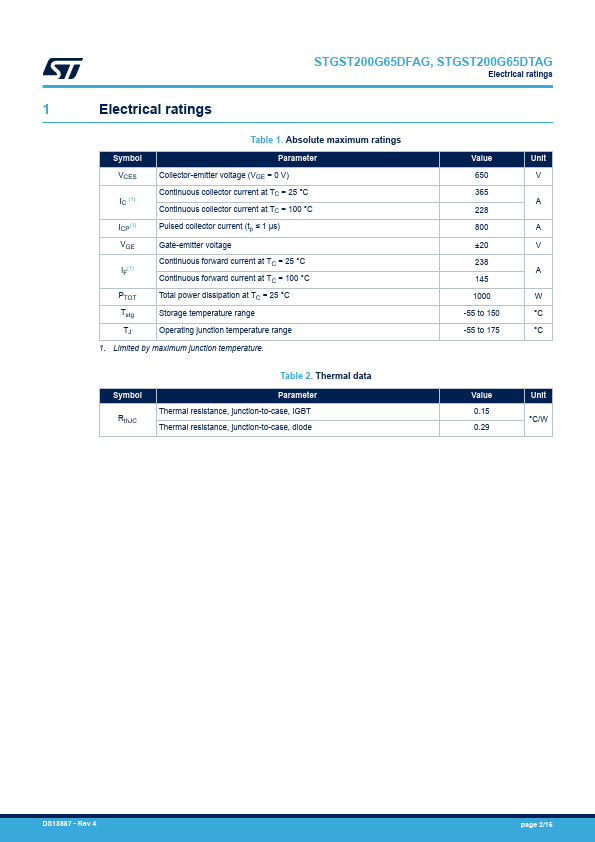

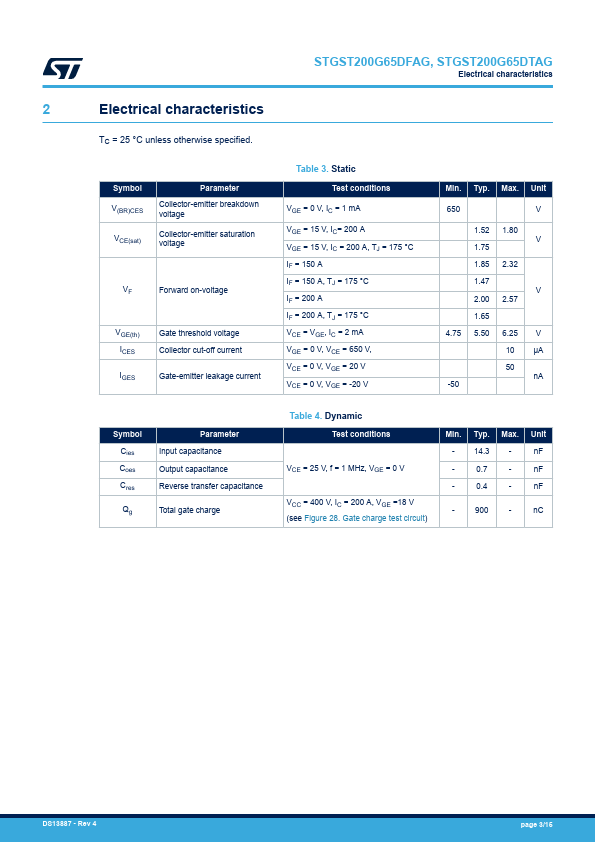

Datasheet Specifications

Part number: STGST200G65DTAG, STGST200G65DFAG
Manufacturer: STMicroelectronics ↗
File Size: 770.75 KB
Datasheet: STGST200G65DFAG-STMicroelectronics.pdf
Description: Automotive-grade trench gate field-stop IGBT
Note: This datasheet PDF includes multiple part numbers: STGST200G65DTAG, STGST200G65DFAG.
Please refer to the document for exact specifications by model.

Features

* 1 4 23 32 1 STPAK C(4) G(3) E(1, 2) NG3C4E12
* AEC-Q101 qualified
* VCE(sat) = 1.52 V (typ. ) @ IC = 200 A
* Positive VCE(sat) temperature coefficient
* Tight parameter distribution
* Low thermal resistance
* Very fast and soft recovery
