STL27N15 N-CHANNEL MOSFET

STL27N15 Description

www.datasheet4u.com N-CHANNEL 150V - 0.045 Ω - 27A PowerFLAT™ LOW GATE CHARGE STripFET™ MOSFET VDSS 150 V RDS(on) <0.060 Ω ID 27 A(1) STL27N15 TARGE.
This MOSFET series realized with STMicroelectronics unique "STripFET™" process has specifically been designed to minimize input capacitance and gate c.

STL27N15 Applications

* s HIGH-EFFICIENCY ISOLATED DC-DC CONVERTERS s TELECOM AND BATTERY CHARGER ADAPTOR s SYNCHRONOUS RECTIFICATION Ordering Information SALES TYPE STL27N15 MARKING L27N15 PACKAGE PowerFLAT PACKAGING TAPE & REEL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(3) Ptot(2) Ptot(1) dv/dt (5) Tstg Tj J

📥 Download Datasheet

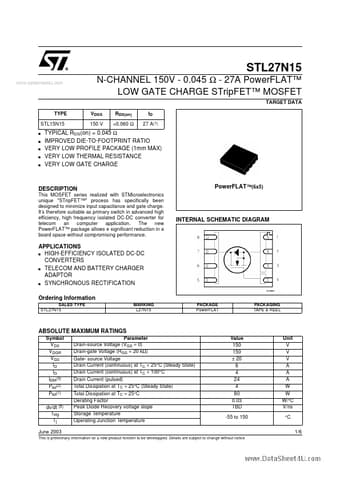

Preview of STL27N15 PDF
datasheet Preview Page 2 datasheet Preview Page 3
