2SD1353 - Silicon NPN Transistor

Features

  • . High DC Current Gain of 200 to 1200 at V CE=5V, Ic=0.5A . Low VcE(sat) of 1 . 0V (Max. ) at Ic=lA, Ib=0.02A . Collector Power Dissipation of 30W at Tc=25°C Unit in mm 0z. z±az.

📥 Download Datasheet

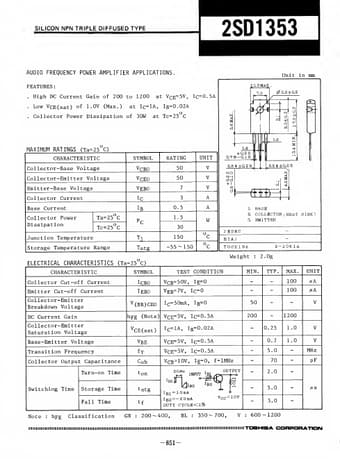

Datasheet preview – 2SD1353

📁 Similar Datasheet

  • 2SD1350 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SD1350A - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SD1351 - Silicon NPN Power Transistors (Inchange Semiconductor)
  • 2SD1351 - NPN Complementary Silicon Power Transistors (Thinki Semiconductor)
  • 2SD1352 - NPN Transistor (INCHANGE)
  • 2SD1355 - NPN Transistor (INCHANGE)
  • 2SD1357 - NPN Transistor (INCHANGE)
  • 2SD1358 - NPN Transistor (INCHANGE)
  • 2SD130 - NPN Transistor (INCHANGE)
  • 2SD1300 - NPN Transistor (INCHANGE)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
SILICON NPN TRIPLE DIFFUSED TYPE 2SD1353 AUDIO FREQUENCY POWER AMPLIFIER APPLICATIONS. FEATURES . High DC Current Gain of 200 to 1200 at V CE=5V, Ic=0.5A . Low VcE(sat) of 1 . 0V (Max.) at Ic=lA, Ib=0.02A . Collector Power Dissipation of 30W at Tc=25°C Unit in mm 0z.z±az MAXIMUM RATINGS (Ta=25 c) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage VcBO 50 Collector-Emitter Voltage VcEO 50 Emitter-Base Voltage VEBO Collector Current ic Base Current Collector Power Dissipation Ta=25°C Tc=25 C IB 0.5 1.5 30 1. BASE 2. COLLECTOR (HEAT SINK) 3. EMITTER Junction Temperature 150 Storage Temperature Range Tstg -55~150 TOSHIBA 2-10K1A ELECTRICAL CHARACTERISTICS (Ta=25 C) Weight : 2 . Og CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX.
