VBT2045BP - Trench MOS Barrier Schottky Rectifier

VBT2045BP Description

VBT2045BP www.vishay.com Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.33 .

VBT2045BP Features

* TMBS® TO-263AB K
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C 2

VBT2045BP Applications

* PIN 1 PIN 2 K HEATSINK For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MECHANICAL DATA PRIMARY CHARACTERISTCS IF(DC) VRRM IFSM VF at IF = 20 A TOP max. (AC mode) TJ max. (DC forward current) 20 A 45 V 160 A 0.51 V 150 °C 200 °C C

📥 Download Datasheet

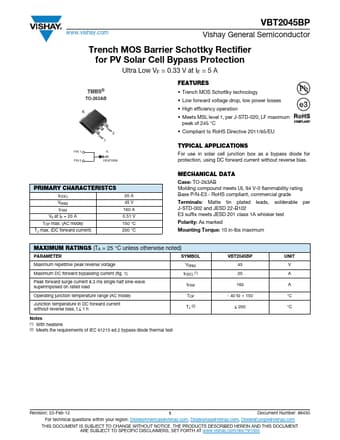

Preview of VBT2045BP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT2045BP
Manufacturer
Vishay ↗
File Size
141.26 KB
Datasheet
VBT2045BP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
