EDI7F492MC

(EDI7F292MC / EDI7F492MC) Boot-Only Sector Erase Flash Memory

EDI7F492MC Features

* 5.0 Volt ± 10% fir read and write operations

* Minimizes system level power requirements Compatible with JEDEC-standards

* Pinout and software compatible with single-power supply Flash

* Superior inadvertent write protection 80 SIMM (JEDEC) Minimum 100,000 write/erase cycles g

EDI7F492MC General Description

The EDI7F292/492MC is a 32/64 Mbit, 5.0 Volt-only Flash memory organized as 2 Megabytes of 8 bits each. The 2Mbytes of data is divided into 32 sectors of 64 Kbytes for flexible erase capability. The 8 bits of data appear on DQ0

*DQ7. The EDI7F292/492MC is offered in 80 Pin SIMM packages. This .

EDI7F492MC Datasheet (698.85 KB)

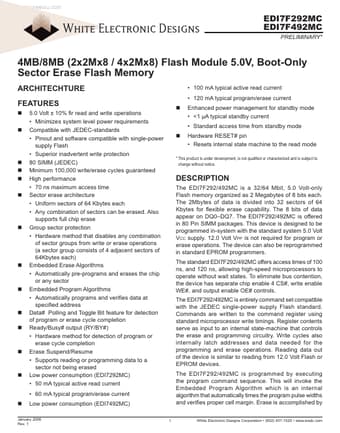

Preview of EDI7F492MC PDF

Datasheet Details

Part number:

EDI7F492MC

Manufacturer:

White Electronic Designs

File Size:

698.85 KB

Description:

(edi7f292mc / edi7f492mc) boot-only sector erase flash memory.
www.DataSheet4U.com White Electronic Designs EDI7F292MC EDI7F492MC PRELIMINARY
* 4MB/8MB (2x2Mx8 / 4x2Mx8) Flash Module 5.0V, Boot-Only Sector E.
