C3M0160120J

Silicon Carbide Power MOSFET

C3M0160120J Features

* 3rd generation Solicon Carbide (SiC) MOSFET technology

* Low impedance package with driver source pin

* 7mm of creepage distance between drain and source

* High blocking voltage with low on-resistance

* High-speed switching with low capacitances

* F

C3M0160120J Datasheet (857.96 KB)

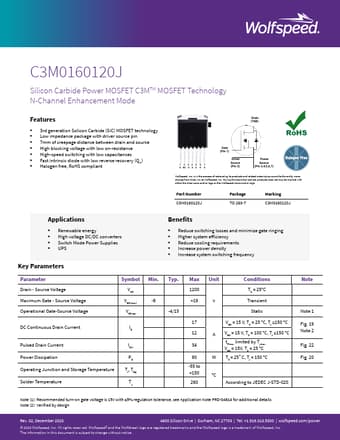

Preview of C3M0160120J PDF

Datasheet Details

Part number:

C3M0160120J

Manufacturer:

Wolfspeed

File Size:

857.96 KB

Description:

Silicon carbide power mosfet.
