PE2301A Datasheet, Mosfet, ChipSourceTek

PE2301A Features

• Mosfet
• VDS = -20V, ID = -3A RDS(ON) < 110mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V Schematic diagram
• High Power and current handing capability
• Lead free produ

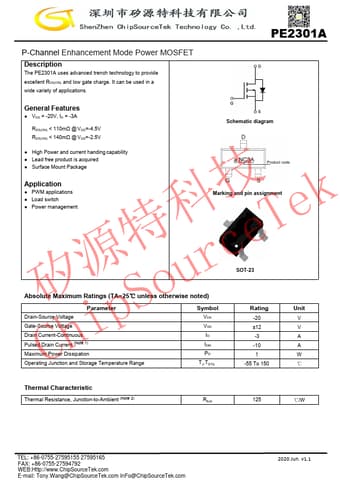

PDF File Details

Part number:

PE2301A

Manufacturer:

ChipSourceTek

File Size:

661.95kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The PE2301A uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of app

PE2301A Application

• Applications General Features
• VDS = -20V, ID = -3A RDS(ON) < 110mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V Schematic diagram
