FDC655AN - Single N-Channel/ Logic Level/ PowerTrenchTM MOSFET

Datasheet Summary

Description

This N-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance.

Features

  • 6.3 A, 30 V. RDS(ON) = 0.027 Ω @ VGS = 10 V R DS(ON) = 0.035 Ω @ VGS = 4.5 V. Fast switching. Low gate charge ( typical 9 nC). SuperSOTTM-6 package: small footprint (72% smaller than SO-8); low profile (1mm thick); pin compatible with TSOP-6. SOT-23 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 S D D 1 6 .55 pin 1 A G D D 2 5 3 4 SuperSOT TM -6 Absolute Maximum Ratings T A = 25°C unless otherwise note Symbol Parameter VDSS VGSS ID PD Drain-Source Voltage Gate-Source Voltage -.

📥 Download Datasheet

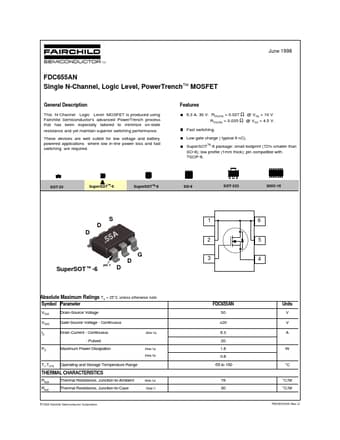

Datasheet preview – FDC655AN

Datasheet Details

Part number FDC655AN
Manufacturer Fairchild Semiconductor
File Size 198.01 KB
Description Single N-Channel/ Logic Level/ PowerTrenchTM MOSFET
Datasheet download datasheet FDC655AN Datasheet
Additional preview pages of the FDC655AN datasheet.

📁 Similar Datasheet

  • FDC655BN - Single N-Channel MOSFET (ON Semiconductor)
  • FDC6506P - Dual P-Channel MOSFET (ON Semiconductor)
  • FDC653N - N-Channel MOSFET (ON Semiconductor)
  • FDC654P - P-Channel MOSFET (ON Semiconductor)
  • FDC6561AN - Dual N-Channel MOSFET (ON Semiconductor)
  • FDC658AP - P-Channel MOSFET (ON Semiconductor)
  • FDC658AP-G - P-Channel MOSFET (ON Semiconductor)
  • FDC658P - P-Channel MOSFET (ON Semiconductor)
  • FDC604P - P-Channel MOSFET (ON Semiconductor)
  • FDC606P - P-Channel MOSFET (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
June 1998 FDC655AN Single N-Channel, Logic Level, PowerTrenchTM MOSFET General Description This N-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance. These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required. Features 6.3 A, 30 V. RDS(ON) = 0.027 Ω @ VGS = 10 V R DS(ON) = 0.035 Ω @ VGS = 4.5 V. Fast switching. Low gate charge ( typical 9 nC). SuperSOTTM-6 package: small footprint (72% smaller than SO-8); low profile (1mm thick); pin compatible with TSOP-6. SOT-23 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 S D D 1 6 .
