Description

This P-Channel Logic Level MOSFET is produced using Fairchild's advanced PowerTrench process.

It has been optimized for battery power management applications.

Battery management Load switch Battery protection DC/DC conversion

Features

  • Max rDS(on) = 50 m: @ VGS = -10 V, ID = -4A.
  • Max rDS(on) = 75 m: @ VGS = -4.5 V, ID = -3.4A.
  • Low Gate Charge.
  • High performance trench technology for extremely low rDS(on).
  • RoHS Compliant S D D 1 PIN 1 G D D SuperSOTTM-6 2 3 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol VDS VGS ID PD TJ, TSTG Drain-Source Voltage Parameter Gate-Source Voltage Drain Current - Continuous - Pulsed Maximum Power dissipation Operating and St.

📥 Download Datasheet

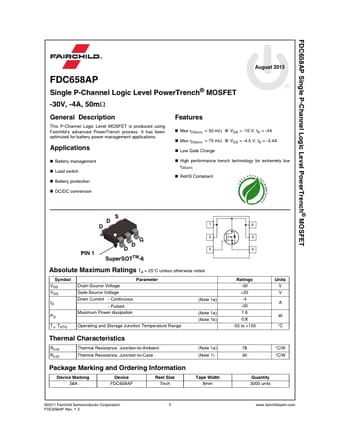

Datasheet preview – FDC658AP
