FDC655BN - PowerTrench MOSFET

Datasheet Summary

Description

This N-Channel Logic Level MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimized on-state resistance and yet maintain superior switching performance.

Features

  • 6.3 A, 30 V. RDS(ON) = 25 mΩ @ VGS = 10 V RDS(ON) = 33 mΩ @ VGS = 4.5 V.
  • Fast switching.
  • Low gate charge.
  • High performance trench technology for extremely low Rdson General.

📥 Download Datasheet

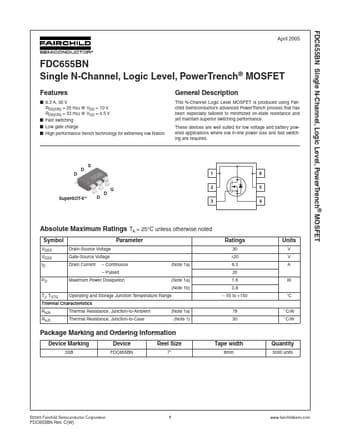

Datasheet preview – FDC655BN

Datasheet Details

Part number FDC655BN
Manufacturer Fairchild Semiconductor
File Size 587.62 KB
Description PowerTrench MOSFET
Datasheet download datasheet FDC655BN Datasheet
