FDC654P - P-Channel MOSFET

Datasheet Summary

Description

These P-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance.

Features

  • -3.6 A, -30 V. RDS(ON) = 0.075 Ω @ VGS = -10 V RDS(ON) = 0.125 Ω @ VGS = -4.5 V. SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. SOT-23 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 S D D 1 6 4 .65 G pin 1 2 5 D D SuperSOT TM -6 3 4 Absolute Maximum Ratings T A = 25°C unless otherwise note Symbol Parameter VDSS.

📥 Download Datasheet

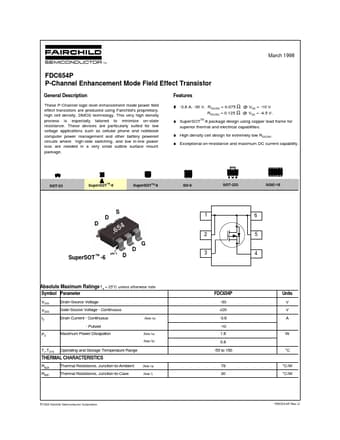

Datasheet preview – FDC654P
