IXFR24N100, HiPerFETTM Power MOSFETs

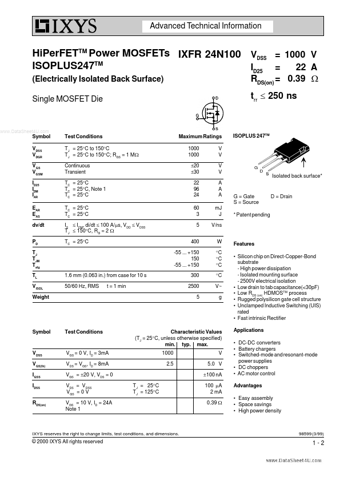

Advanced Technical Information HiPerFETTM Power MOSFETs IXFR 24N100 VDSS = 1000 V ISOPLUS247TM 22 A ID25 = (Electrically Isolated Back Surface) Single MOSFET Die RDS(on) = 0.39 W trr £ 250 ns www.DataSheet4U.com Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL VISOL Weight Test Conditions T J = 25°C to 150°C T J = 25°C to 150°C; RGS = 1 MW Continuous Transient TC = 25°C TC = 25°C, Note 1 TC = 25°C TC = 25°C TC = 25°C IS £ IDM, di/dt £ 100 A/ms, VDD £ VDSS T J £ 150°C,

IXFR24N100 Features

* Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation

* Low drain to tab capacitance(
