* High Voltage BIMOSFETTM - substitute for high voltage MOSFETs with significantly lower voltage drop - fast switching for high frequency operation - reverse conduction capability
* ISOPLUS i4-PACTM high voltage package - isolated back surface - enlarged creepage towards heatsink - e
IXBF40N160 Datasheet (81.62 KB)
IXBF40N160
IXYS
81.62 KB
High voltage bimosfet.

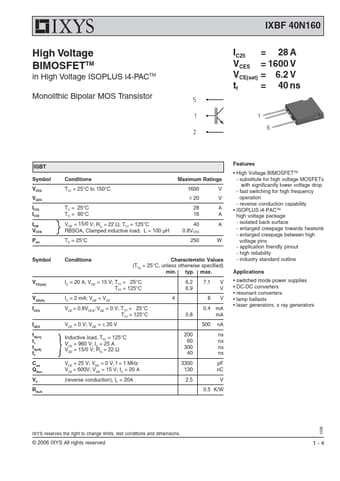

High Voltage BIMOSFETTM
in High Voltage ISOPLUS i4-PACTM
Monolithic Bipolar MOS Transistor
IXBF 40N160
IC25 = 28 A VCES = 1600 V VCE(sat) = 6.2 V tf .
