IRGPS40B120UD - Insulated Gate Bipolar Transistor

International Rectifier

📥 Download Datasheet

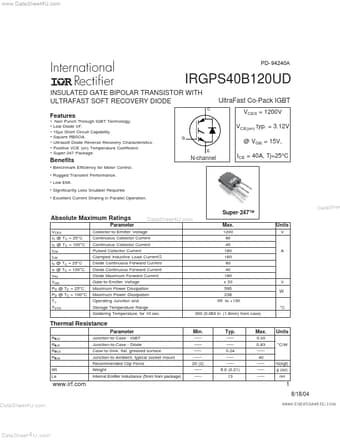

IRGPS40B120UD Datasheet Preview — Preview of IRGPS40B120UD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRGPS40B120UD
Manufacturer: International Rectifier
File Size: 347.38 KB
Datasheet: IRGPS40B120UD_InternationalRectifier.pdf
Description: Insulated Gate Bipolar Transistor

IRGPS40B120UD Product details

Features

Non Punch Through IGBT Technology.
Low Diode VF.
10µs Short Circuit Capability.
Square RBSOA.
Ultrasoft Diode Reverse Recovery Characteristics.
Positive VCE (on) Temperature Coefficient.
Super-247 Package. G E @ VGE = 15V, N-channel Benefits.
Benchmark Efficiency for Motor Control.
Rugged Transient Performance.
Low EMI.
Significantly Less Snubber Required.
Excellent Current Sh.
