FDG6317NZ - Dual N-Channel MOSFET

ON Semiconductor

FDG6317NZ Datasheet Preview — Preview of FDG6317NZ PDF

Datasheet Details

Part number	FDG6317NZ
Manufacturer	ON Semiconductor ↗
File Size	245.78 KB
Description	Dual N-Channel MOSFET
Datasheet	FDG6317NZ-ONSemiconductor.pdf

FDG6317NZ Product details

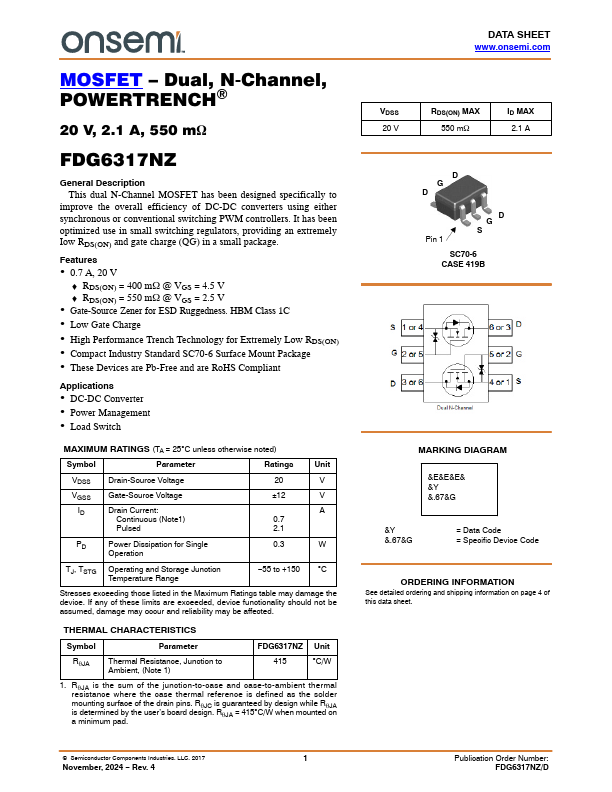

Description

This dual N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC-DC converters using either synchronous or conventional switching PWM controllers.It has been optimized use in small switching regulators, providing an extremely Iow RDS(ON) and gate charge (QG) in a small package.

Features

0.7 A, 20 V  RDS(ON) = 400 mW @ VGS = 4.5 V  RDS(ON) = 550 mW @ VGS = 2.5 V.
Gate-Source Zener for ESD Ruggedness. HBM Class 1C.
Low Gate Charge.
High Performance Trench Technology for Extremely Low RDS(ON).
Compact Industry Standard SC70-6 Surface Mount Package.
These Devices are Pb-Free and are RoHS Compliant.
