C3M0040120J2, Silicon Carbide Power MOSFET

C3M0040120J2 Silicon Carbide Power MOSFET N-Channel Enhancement Mode .

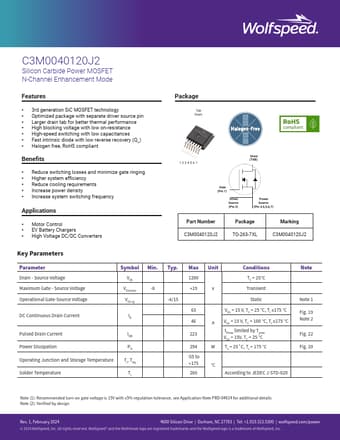

datasheet Preview Page 1 from Datasheet4u.com

C3M0040120J2-Wolfspeed.pdf

C3M0040120J2 Datasheet Preview — Preview of C3M0040120J2 PDF

Datasheet Details

Part number:

C3M0040120J2

Manufacturer:

Wolfspeed

File Size:

1.20 MB

Description:

Silicon Carbide Power MOSFET

Features

* 3rd generation SiC MOSFET technology
* Optimized package with separate driver source pin
* Larger drain tab for better thermal performance
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances

Applications

* Motor Control
* EV Battery Chargers
* High Voltage DC/DC Converters Package Tab Drain 1234567 Drain (TAB) Gate (Pin 1) Driver Source (Pin 2) Power Source (Pin 3,4,5,6,7) Part Number C3M0040120J2 Package TO-263-7XL Marking C3M0040120J2 Key Parameters Parameter Dr
