DS90CF563, LVDS 18-Bit Color Flat Panel Display Link

The DS90CF563 transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled a.

DS90CF563_NationalSemiconductor.pdf

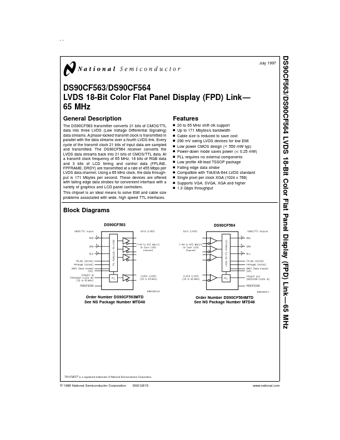

DS90CF563 Datasheet Preview — Preview of DS90CF563 PDF

Datasheet Details

Part number:

DS90CF563

Manufacturer:

National Semiconductor

File Size:

287.80 KB

Description:

LVDS 18-Bit Color Flat Panel Display Link

DS90CF563 Features

* n n n n n n n n n n n n n 20 to 65 MHz shift clk support Up to 171 Mbytes/s bandwidth Cable size is reduced to save cost 290 mV swing LVDS devices for low EMI Low power CMOS design ( < 550 mW typ) Power-down mode saves power ( < 0.25 mW) PLL requires no external components Low profile 48-lead TSSOP
