HGT1S3N60C3DS, 6A 600V UFS Series N-Channel IGBT

S E M I C O N D U C T O R HGTP3N60C3D, HGT1S3N60C3D, HGT1S3N60C3DS 6A, 600V, UFS Series N-Channel IGBT with Anti-Parallel Hyperfast Diodes Packaging .
The HGTP3N60C3D, HGT1S3N60C3D, and HGT1S3N60C3DS are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar trans.

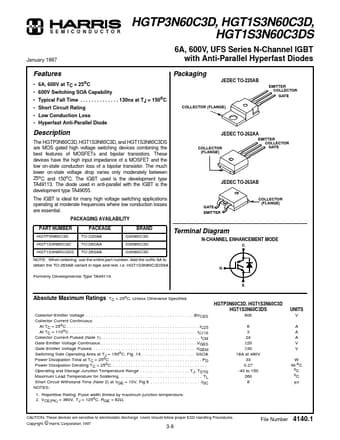

datasheet Preview Page 1 from Datasheet4u.com

HGT1S3N60C3DS_FairchildSemiconductor.pdf

HGT1S3N60C3DS Datasheet Preview — Preview of HGT1S3N60C3DS PDF

Datasheet Details

Part number:

HGT1S3N60C3DS

Manufacturer:

Fairchild Semiconductor

File Size:

327.17 KB

Description:

6A 600V UFS Series N-Channel IGBT

Features

* 6A, 600V at TC = 25oC
* 600V Switching SOA Capability
* Typical Fall Time
* . . . . 130ns at TJ = 150oC
* Short Circuit Rating
* Low Conduction Loss

Applications

* operating at moderate frequencies where low conduction losses are essential. PACKAGING AVAILABILITY PART NUMBER HGTP3N60C3D HGT1S3N60C3D HGT1S3N60C3DS PACKAGE TO-220AB TO-262AA TO-263AB BRAND G3N60C3D G3N60C3D G3N60C3D JEDEC TO-262AA COLLECTOR (FLANGE) A EMITTER COLLECTOR GATE JEDEC TO-263AB M A
