CGHV27030S Datasheet, Hemt, MACOM

CGHV27030S Features

  • Hemt for 50 V in CGHV27030S-AMP1
  • 2.5 - 2.7 GHz Operation
  • 30 W Typical Output Power
  • 20 dB Gain at 5 W PAVE
  • -34 dBc ACLR at 5 W PAVE
  • 30% eff

PDF File Details

Part number:

CGHV27030S

Manufacturer:

MACOM

File Size:

5.42MB

Download:

📄 Datasheet

Description:

Gan hemt. The CGHV27030S is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT) which offers high efficiency, high gai

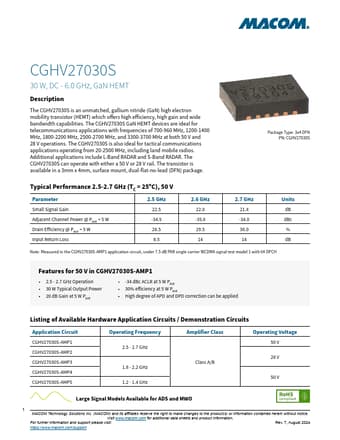

Datasheet Preview: CGHV27030S 📥 Download PDF (5.42MB)
Page 2 of CGHV27030S Page 3 of CGHV27030S

CGHV27030S Application

  • Applications with frequencies of 700-960 MHz, 1200-1400 MHz, 1800-2200 MHz, 2500-2700 MHz, and 3300-3700 MHz at both 50 V and 28 V operations. The C
