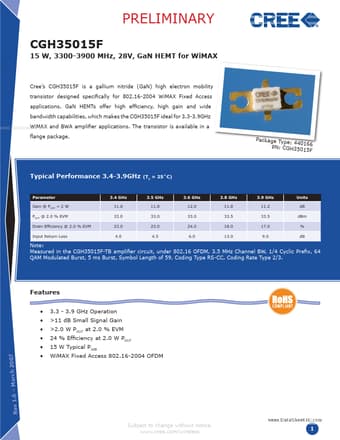

PRELIMINARY CGH35015F 15 W, 3300-3900 MHz, 28V, GaN HEMT for WiMAX Cree’s CGH35015F is a gallium nitride (GaN) high electron mobility transistor designed specifically for 802.16-2004 WiMAX Fixed Access applications. GaN HEMTs offer high efficiency, high gain and wide bandwidth capabilities, which makes the CGH35015F ideal for 3.3-3.9GHz WiMAX and BWA amplifier applications. The transistor is available in a www.DataSheet4U.com flange package. Package Type : 440166 PN: CGH3501 5F Typical Perfor.

CGH35015F Features

* ch 2007 Rev 1.6

* Mar 3.3 - 3.9 GHz Operation >11 dB Small Signal Gain >2.0 W POUT at 2.0 % EVM 24 % Efficiency at 2.0 W POUT 15 W Typical P3dB WiMAX Fixed Access 802.16-2004 OFDM
