CGH35060F1 Datasheet - Cree

CGH35060F1 GaN HEMT

RES, 1/16W, 0603, 1%, 5.1 OHMS RES, 1/16W, 0603, 1%, 100 OHMS CAP, 470pF, 5%,100V, 0603 CAP, 33 UF, 20%, G CASE CAP, 1.0UF, 100V, 10%, X7R, 1210 CAP 10UF 16V TANTALUM CAP, 7.5pF, +/-0.1pF, 0603, ATC CAP, 0.6pF, +/-0.05pF, 0603, ATC CAP, 1.2pF, +/-0.1pF, 0603, ATC CAP, 4.7pF, +/-0.25pF, 100B, ATC CAP.
CGH35060F1 / CGH35060P1 60 W, 3.3-3.6 GHz, 28V, GaN HEMT for WiMAX, Broadband Wireless Access Creeโ€™s CGH35060F is a gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically for high efficiency, high gain and wide bandwidth capabilities, which makes the CGH35060F ideal for 3.3-3.6 GHz WiMAX and BWA linear amplifier applications. The transistor is supplied in a ceramic/ metal flange and pill package. Cree GaN-on-SiC HEMTs are highly correctable, enabling even greater e.

CGH35060F1 Features

* 3.3 - 3.6 GHz Operation

* 60 W Peak Power Capability

* 12 dB Small Signal Gain

* 8.0 W PAVE at < 2.0 % EVM

* 25 % Drain Efficiency at 8 W PAVE

* WiMAX Fixed Access 802.16-2004 OFDM

* WiMAX Mobile Access 802.16e OFDMA Rev 3.1 - Februar

CGH35060F1 Datasheet (2.51 MB)

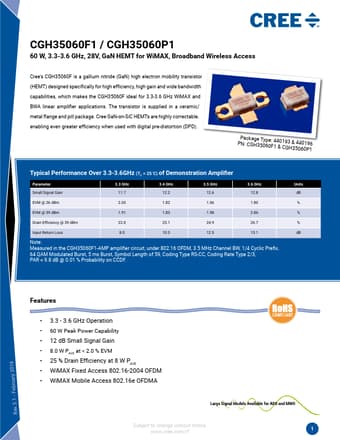

Preview of CGH35060F1 PDF

Datasheet Details

Part number:

CGH35060F1

Manufacturer:

Cree

File Size:

2.51 MB

Description:

Gan hemt.
