CGH27030S Datasheet, Hemt, MACOM

CGH27030S Features

  • Hemt for 28 V in CGH27030S-AMP1
  • 1.8 - 2.2 GHz Operation
  • 30 W Typical Output Power
  • 18 dB Gain at 5 W PAVE
  • -39 dBc ACLR at 5 W PAVE
  • 33% effici

PDF File Details

Part number:

CGH27030S

Manufacturer:

MACOM

File Size:

2.71MB

Download:

📄 Datasheet

Description:

Gan hemt. The CGH27030S is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically for high efficien

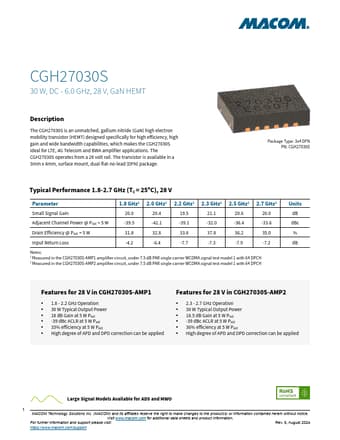

Datasheet Preview: CGH27030S 📥 Download PDF (2.71MB)
Page 2 of CGH27030S Page 3 of CGH27030S

CGH27030S Application

  • Applications The CGH27030S operates from a 28 volt rail. The transistor is available in a 3mm x 4mm, surface mount, dual-flat-no-lead (DFN) package
