STS2305A Datasheet - SamHop Microelectronics

STS2305A P-Channel Enhancement Mode Field Effect Transistor

STS2305A Features

* Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ID -3.3A R DS(ON) (m Ω) Max 70 @ VGS=-4.5V 100 @ VGS=-2.5V S OT 23-3L D S G G D S ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source Vol

STS2305A Datasheet (169.27 KB)

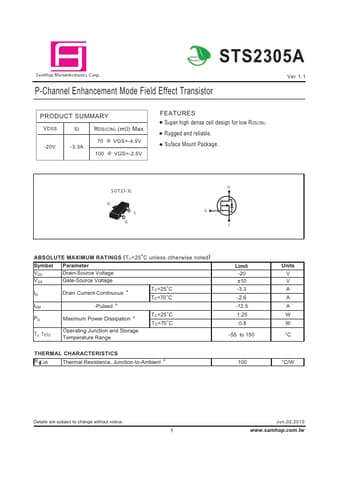

Preview of STS2305A PDF
STS2305A Datasheet Preview Page 2 STS2305A Datasheet Preview Page 3

Datasheet Details

Part number:

STS2305A

Manufacturer:

SamHop Microelectronics

File Size:

169.27 KB

Description:

P-channel enhancement mode field effect transistor.
