PTFB090901FA, PTFB090901EA - Thermally-Enhanced High Power RF LDMOS FET

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PTFB090901FA, PTFB090901EA. Please refer to the document for exact specifications by model.

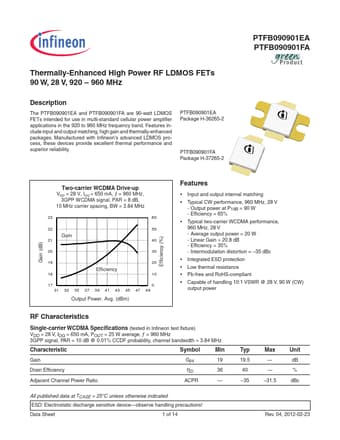

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PTFB090901FA, PTFB090901EA
Manufacturer
Infineon ↗
File Size
223.44 KB
Datasheet
PTFB090901EA-Infineon.pdf
Description
Thermally-Enhanced High Power RF LDMOS FET
Note
This datasheet PDF includes multiple part numbers: PTFB090901FA, PTFB090901EA.
Please refer to the document for exact specifications by model.

PTFB090901FA Product details

Description

The PTFB090901EA and PTFB090901FA are 90-watt LDMOS FETs intended for use in multi-standard cellular power amplifier applications in the 920 to 960 MHz frequency band.

Features
